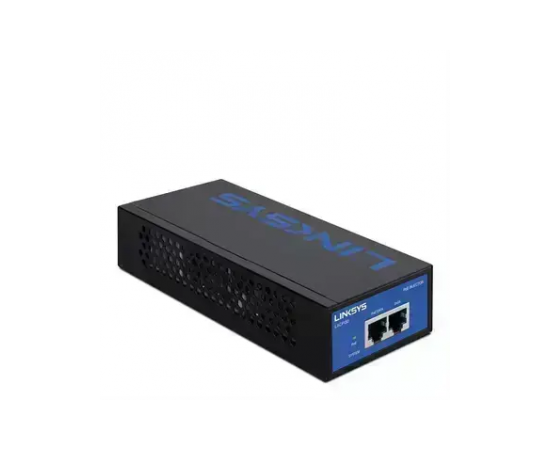

LINKSYS LACPI30 HIGH POWER POE INJECTOR FOR BUSINESS

TECHNICAL SPECS

Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX

IEEE2.3ab 1000Base-T, IEEE802.3af, IEEE802.3at

Ethernet Ports 10/100/1000 port

10/100/1000 port with 30 Watts PoE

LEDs System LED (blue), PoE LED (green)

Power 100~240V AC, 50~60 Hz, (2A max)

Enclosure Type Metal

Dimensions (L x W x H) 154 x 73 x 36 mm

Weight 393.5 grams (13.87 oz)

Mounting Wall mount

Operating Temperature 0°C to 40°C (32°F to 104°F)

Non-operating Temperature -40°C to 70°C (-40°F to 158°F)

Operating Humidity 10% to 90% non-condensing

Non-operating Humidity 5% to 90% non-condensing

Regulatory Certification FCC Class A, CE Class A, IC, Ul/cUL, CB

• Model Name:
  LACPI30
• Network Standards:
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3af
  • IEEE 802.3at
• Ports:
  1 Gigabit Ethernet (10/100/1000) port, 1 Gigabit Ethernet (10/100/1000 )port with PoE of 30 Watts
• LEDs:
  System LED (blue), PoE LED (green)
• Dimensions (LxWxH):
  154 x 73 x 36 (mm)
• Weight:
  393.5 grams (13.87 oz)
• Power:
  100~240V AC, 50~60 Hz, (2A max)

• Operating Temperature:
  0°C to 40°C (32°F to 104°F)
• Storage Temperature:
  -40ºC to 70ºC, (-40ºF to 158ºF)
• Operating Humidity:
  10% to 90% non-condensing
• Storage Humidity:
  5% to 90%, Non-Condensing
• Mounting:
  Wall
• Regulatory Compliance:
  FCC Class A, CE Class A, IC, UL/cUL, CB

مواصفات المنتج العامة
منفذ شبكة 10/100/1000:

• 10/100/1000 port 10/100/1000 port with 30 Watts PoE

Protocol:IEEE802.3 10Base-T, IEEE802.3u 100Base-TX IEEE2.3ab 1000Base-T, IEEE802.3af, IEEE802.3at

LEDs: System LED (blue), PoE LED (green)

Power Supply:100~240V AC, 50~60 Hz, (2A max)

الوزن:

• 393.5 grams
