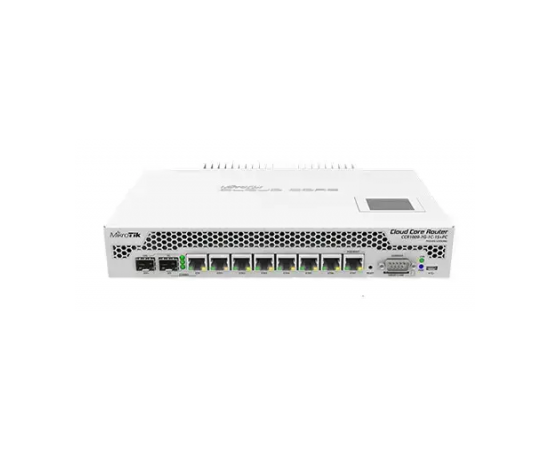

Our popular 9-core Cloud Core Router is now available in a new passive cooling enclosure.
This CCR1009 unit is equipped with two heat-pipes and a specially designed heat-sink, so its completely silent.
The unit is powered by an external 24v 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.
The device comes with a desktop enclosure, but special rackmount brackets are also included, so it can be used either on desk or in rack.
Product specifications
| Details | |
|---|---|
| Product code | CCR1009-8G-1S-1S+PC |
| CPU nominal frequency | 1 GHz |
| CPU core count | 9 |
| Size of RAM | 2 GB |
| Architecture | TILE |
| 10/100/1000 Ethernet ports | 8 |
| Number of USB ports | 1 |
| Power Jack | 1 |
| PoE in | Yes |
| Supported input voltage | 14 V – 57 V |
| Voltage Monitor | Yes |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 272x190x47mm |
| Operating System | RouterOS |
| Tested ambient temperature | -20C .. +60C |
| License level | 6 |
| Current Monitor | Yes |
| CPU | TLR4-00980CG-10CE-A3a |
| Max Power consumption | 30W |
| SFP ports | 1 |
| SFP+ ports | 1 |
| USB slot type | microUSB type AB |
| Serial port | RS232 |
| Storage type | NAND |
| Storage size | 128 MB |
