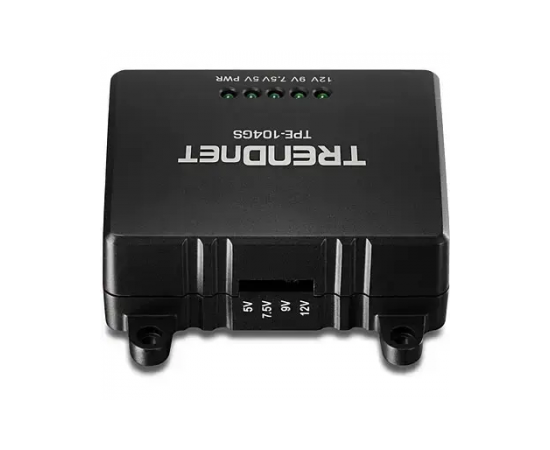

TRENDnet TPE-104GS Gigabit PoE Splitter

OVERVIEW

TRENDnet’s Gigabit PoE Splitter, model TPE-104GS, networks a non-PoE device in a remote location using

a PoE network connection. The TPE-104GS splits a Gigabit PoE connection into separate power and Gigabit

data sources. A handy toggle switch adjusts output power to 5, 7.5, 9, or 12 Volts in order to match non-PoE

device power requirements. The included 2 and 2.5mm jumper cables increase power pin device compatibility.

Performance

	PoE  Compatible with PoE (802.3af) network connections
	Gigabit Ethernet  Supports Gigabit network speeds
	Adjustable Dip Switch Capacity A handy toggle switch adjusts output power to 5V, 7.5V, 9V, or 12V in order to match non-PoE device power requirements
	Jumper Cables The included 2 and 2.5mm jumper cables increase power pin device compatibility with the non-PoE networked device
	No Power Adapter The TPE-104GS is powered by the PoE connection
	Mounting Built-in mounting points increase installation flexibility

GALLERY
  SPECIFICATIONS

Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3ab
• IEEE 802.3af

Device Interfaces

• 1 x Gigabit data/power in port
• 1 x Gigabit data out port
• 1 x Power out port
• LED indicators
• Adjustable output power DIP switch (5 V, 7.5 V, 9 V, 12 V)

Data Transfer Rate

• Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
• Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
• Gigabit: 2000Mbps (full duplex)

Jumper Cable

• 2.0 to 2.0mm
• 2.0 to 2.5mm

Power

• PoE network cable input: 48VDC, 0.38A
• Output (Volts): 5 (2A), 7.5 (2A), 9 (1.7A), 12 (1.2A)
• Consumption: 0.3 Watts (max.)

Operating Temperature

• 32 – 113°F (0 – 45°C)

Operating Humidity

• Max. 90% non-condensing

Dimensions

• 2.8 x 1.8 x 1 in. (70 x 45 x 25mm)

Weight

• 2.1oz (60g)

Certifications

• CE
• FCC
