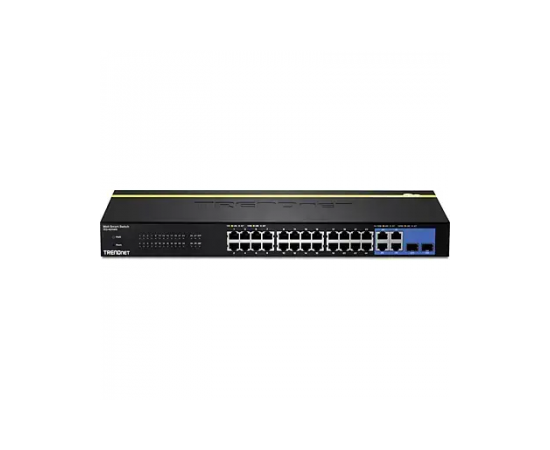

TRENDnet’s 24-Port 10/100 Mbps Web Smart Switch

ر.س410.00

Categories: TRENDnet سويتشات, سويتشات

Description
Reviews (0)

TRENDnet’s fanless 24-Port 10/100 Mbps Web Smart Switch, model TEG-424WS, offers 24 x 10/100 Mbps ports, 4 x Gigabit uplink ports, 2 x shared SFP slots, and a 12.8 Gbps switching capacity. This IPv6-ready switch offers advanced traffic management, troubleshooting, access control, energy-saving GREENnet, and monitoring features at a reduced cost.

Standards	IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3az
Device Interface	24 x 10/100 Mbps ports (ports 1-24) 4 x Gigabit ports (25-28) 2 x Shared SFP slots (shared with ports 27-28) LED indicators
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex)
Performance	Switch fabric: 12.8 Gbps RAM buffer: 512 KB MAC Address Table: 8K entries Jumbo Frames: 10 KB HOL Blocking Prevention Forwarding rate: 9.5 Mpps (64-byte packet size)
Management	HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az Power Saving LLDP Virtual Cable Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP DHCPv6, Auto configuration
MIB	MIB II RFC 1213 Bridge MIB RFC 1493 Bridge MIB Extension RFC 2674 SNMPv2 MIB RFC 1907 Ethernet Interface MIB RFC 1643 Ethernet-like MIB RFC 2863 Interface Group MIB RFC 2233 MIB Traps Convention RFC 1215 RMON MIB RFC 1757, RFC 2819 802.1p MIB RFC 2674 RADIUS Client Authentication MIB RFC 2618 LLDP-MIB IEEE 802.1ab Ping MIB RFC 2925, RFC 4560
Spanning Tree	IEEE 802.1D STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation	Static Link Aggregation 802.3ad Dynamic LACP
Quality of Service (QoS)	802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control per port Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN	Multiple management VLAN assignment Asymmetric VLAN 802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs)
Multicast	IGMP Snooping v1, v2, v3 (per VLAN) Static Multicast Address Up to 256 multicast entries
Port Mirror	RX, TX, or Both One to one
Access Control	802.1X Port-Based Network Access Control, RADIUS, TACACS+ Local Dial In User Authentication DHCP Snooping (per VLAN) Loopback Detection Duplicated Address Detection Trusted Host Denial of Service (DoS)
ACL IPv4 L2-L4 & IPv6	MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP/UDP Port 1-65535 802.1p DSCP (IPv4 only) IPv6 Address (IPv6 only)
Compatibility	Optional Software Utility: Windows® 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
Special Features	Fanless Design IPv6 802.3az power saving Rack-mountable
Power	Input: 100 – 240 V AC, 50/60 Hz, internal power supply Consumption: 11.56 Watts (max.)
Fan/Acoustics	Fanless design
MTBF	395,811 hours
Operating Temperature	0 – 45°C (32 – 113°F)
Operating Humidity	Max. 90% non-condensing
Dimensions	440 x 210 x 44.45 mm (17.3 x 8.27 x 1.75 in.) Rack mountable 1U height
Weight	1.78 kg (3.92 lbs.)
Certifications	CE FCC
Warranty

PACKAGE CONTENTS

TEG-424WS
Quick Installation Guide
CD-ROM (Utility & User’s Guide)
Power cord (1.8 m/6 ft.)
Rack mount kit

Hardware
	Hardware Design Provides 24 x 10/100 Mbps ports, 4 x Gigabit ports, 2 x shared SFP slots, a 12.8 Gbps switching capacity, a built-in power supply, and rackmount brackets
	Fanless Fanless design reduces energy consumption and operating noise
	IPv6 Ready This switch supports IPv6 configuration and IPv6 neighbor discovery
	Traffic Management A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, Private VLAN, Bandwidth Controls, GVRP, IGMP v1-v3, 802.1p Class of Service (CoS), Spanning Tree (STP, RSTP, and MSTP), and QoS queue scheduling
	Troubleshooting Real-time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting
	Access Controls Features such as ACL, SSL, MAC/port filtering, Denial of Service controls, 802.1X, TACACS+, and RADIUS are compatible with layered network access controls
	Monitoring RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
