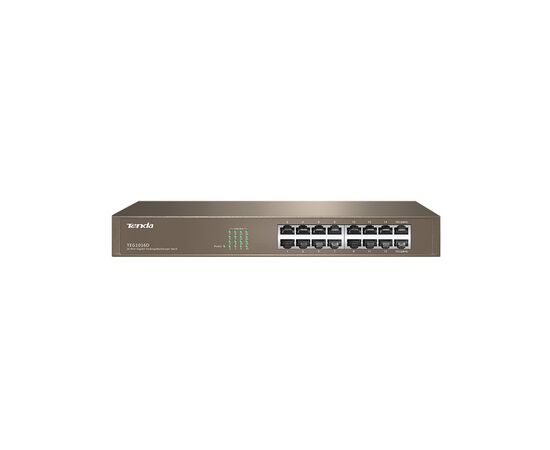

16-Port Gigabit Ethernet Switch

Hardware

Network standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

LED Indicator:
1* Power,16* Link/Act

Interfaces:
16*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)

Transmission media:
Recommended: CAT5/5e UTP or better

Fan quantity:
N/A

Dimension:
294.0mmx179.0mmx44.0mm

Material:
Metal

Level of protection:
Lightning protection for uplink ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode:
Store-and-forward

Switch capacity:
32Gbps

Packet forwarding rate:
23.80Mpps

Buffer:
2Mb

MAC address table:
8K

Jumbo frame:
N/A

Power:
Input: 100-240V AC 50/60Hz

Power consumption:
Max:<12W

Mounting:
Desktop mounting: support
Wall mounting: support
Rack mounting: support

Environment:
Operating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C
Operating humidity: (10% – 90%) RH, non-condensing
Storage humidity: (5% – 90%) RH, non-condensing

Certification:
CE, FCC, RoHS

__________________________________________

Software

Protocols:
CDMA/CD

MAC address learning:
Auto-Learning and Auto-Aging

Functions
plug-and-play
