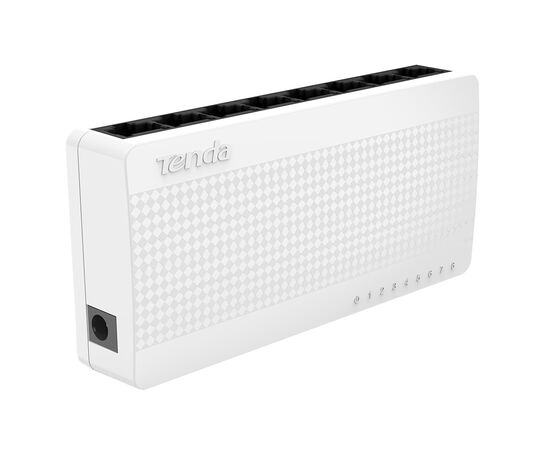

8-port Ethernet Switch

Hardware

Network standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

LED Indicator:
1* Power, 8* Link/Act

Interfaces:
8*10/100 Base-TX Ethernet ports (Auto MDI/MDIX)

Transmission media:
Recommended: CAT5/5e UTP or better

Fan quantity:
N/A

Dimension:
124.0mmx59.0mmx23.1mm

Material:
Plastic

Level of protection:
ESD:
Air discharge: ±8kV
Contact discharge: ±6kV

Forwarding mode:
Store-and-forward

Switch capacity:
1.6Gbps

Packet forwarding rate:
1.19Mpps

Buffer:
448K

MAC address table:
1K

Jombo frame:
N/A

Power:
Input: 100-240V AC 50/60Hz
Output: 5.0V 0.6A ( External Power Adapter )

Power consumption:
Max:<2.15W

Mounting:
Desktop mounting: support
Wall mounting: support
Rack mounting: non-support

Environment:
Operating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C
Operating humidity: (10% – 90%) RH, non-condensing
Storage humidity: (5% – 90%) RH, non-condensing

Certification:
CE, FCC, RoHS

_____________________________________________

Software

Protocols:
CDMA/CD

MAC address learning:
Auto-Learning and Auto-Aging

Functions:
plug-and-play
