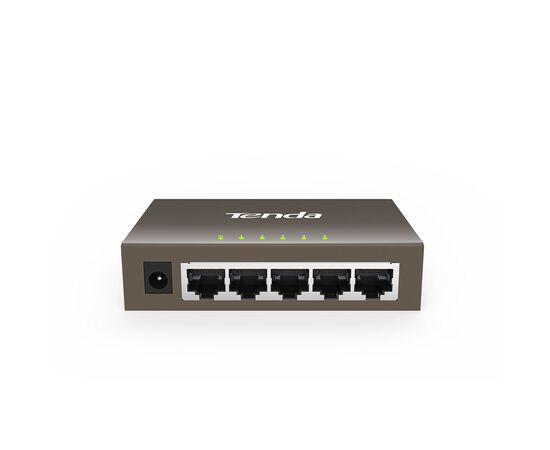

5-Port Gigabit Ethernet Switch

Hardware

Network standards:
IEEE802.3、 IEEE802.3u、IEEE802.3x、 IEEE802.3ab

LED Indicator:
1 * Power，5 * Link/Act

Interfaces:
5*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX)

Transmission media:
Recommended: CAT5/5e UTP or better

Fan quantity:
N/A

Dimension:
100.0mmx64.0mmx23.0mm

Material:
Metal

Level of protection:
ESD:
Air discharge: ±8kV
Contact discharge: ±6kV

Forwarding mode:
Store-and-forward

Switch capacity:
1Gbps

Packet forwarding rate:
7.44Mpps

Buffer:
1Mb

MAC address table:
2K

Jombo frame:
15K

Power:
Input: 100-240V AC 50/60Hz
Output: 5.0V 0.6A ( External Power Adapter )

Power consumption:
Max:<2.5W

Mounting:
Desktop mounting: support
Wall mounting: support
Rack mounting: non-support

Environment:
Operating temperature: 0°C – 45℃
Storage temperature: -40°C – 70°C
Operating humidity: (10% – 90%) RH, non-condensing
Storage humidity: (5% – 90%) RH, non-condensing

Certification:
CE, FCC, RoHS

______________________________________

Software

Protocols:
CDMA/CD

MAC address learning:
Auto-Learning and Auto-Aging

Functions:
plug-and-play
