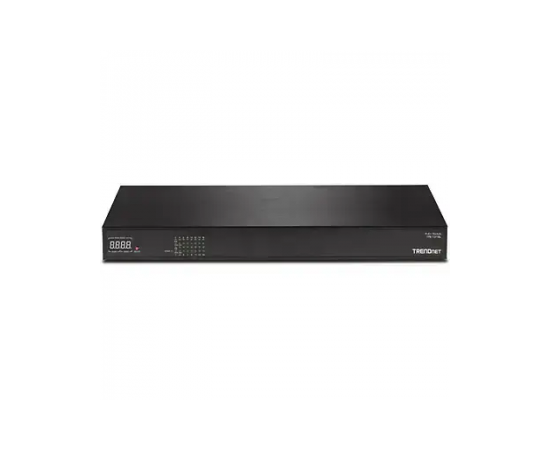

TPE-TG160g-16-Port Gigabit PoE+ Switch

NDnet’s 16-Port Gigabit PoE+ Switch, model TPE-TG160g, offers 16 x Gigabit PoE+ ports, a 32 Gbps switching capacity,

and a PoE power budget of 246 Watts. This rugged metal switch comes with a rack mount kit.

PoE Camera Flexibility The switch recognizes non-PoE, PoE (15.4 W), and PoE+ (30 W) cameras (or other PoE devices) and supplies the required amount of power automatically.	Full PoE Power  The large 246 Watt PoE power budget supplies full PoE power to every port, thereby maximizing the a number of allowable connected PoE devices.	Gigabit Networking  All Gigabit ports produce a 32 Gbps switching capacity and support Jumbo Frames up to 10 KB.

	PoE+ Supplies up to 30 Watts of power per port with a 246 Watt PoE budget
	Ports 16 x Gigabit PoE+ ports
	Switching Capacity 32 Gbps switching capacity
	Jumbo Frame Sends Jumbo Frames (up to 10 KB) for increased performance
	Energy Savings Embedded GREENnet technology reduces power consumption
	Rack mountable metal enclosure with included mounting kit
	LED Indicators convey port status

• Standards
• IEEE 802.1p
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3ab
• IEEE 802.3af (15.4 Watts/port)
• IEEE 802.3at (30 Watts/port)
• IEEE 802.3az
• Device Interface
• 16 x Gigabit PoE/PoE+ ports
• LED indicators
• Data Transfer Rate
• Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit: 2,000 Mbps (full duplex)
• Performance
• Data RAM Buffer: 512 KB
• Switch Fabric: 32 Gbps
• MAC Address Table: 8 K entries
• Forwarding rate: 23.8 Mpps (64-byte packet size)
• Jumbo Frame: 10 KB
• Power
• Input: 110-240 V AC, 50/60 Hz, 54 V / 4.82 A; 12 V / 1.67 A
• Consumption: 36 Watts (Max. without PD)
• PoE
• PoE budget: 246 Watts
• Pin 3,6 for power+ and pin 1,2 for power- (mode A)
• Over current protection
• Short circuit protection
• Operating Temperature
• 0 – 40 °C (32 – 104 °F)
• Operating Humidity
• Max. 90% non-condensing
• Dimensions
• 440 x 210 x 44 mm (17.3 x 8.3 x 1.7 in.)
• Weight
• 3 kg (6.8 lbs.)
• Certifications
• CE
• FCC

Package Contents

• TPE-TG160g
• Quick Installation Guide
• Rack mount kit
• Power cord
